ASDA-A2 Servo Motor ve Sürücüler

DELTA ASD-A2 SERİSİ SERVO AİLESİ



Endüstriyel otomasyondaki hareket kontrol uygulamalarının zorlu gereksinimlerini karşılamak ve makine tasarımcıları ve sistem entegratörleri tarafından talep edilen yüksek hassasiyetli konumlandırma kontrolünün ihtiyaçlarını karşılamak üzere Delta, 2009’da ASDA-A2 serisi servo motorlar ve servo sürücüler için yüksek performanslı hareket kontrolünü başlattı.

Satışla İletişime Geçin Fiyat Teklifi İsteyin

High Precision Contrul

  • ECMA series servo motors feature incremental encoder with 20-bit resulution (1280000 pulses/revulution). Existing functions to meet the requirements from delicate process have been enhanced. Stable rotation at low speed has also been achieved.
  • Up to 1kHz frequency response. Settling time below 1ms.

Superlative Vibration Suppression

  • Built-in automatic low-frequency vibration suppression (for crane contrul): two vibration suppression filters are provided to minimize the vibration at machine edges automatically and sufficiently.

  • Built-in automatic high-frequency resonance suppression: two auto notch filters are provided to suppress the mechanical resonance automatically.

Flexible Internal Position Mode (Pr Mode)

  • ASDA-A2-Soft configuration software provides internal parameter editing function for defining the path of each axis freely.
  • 64 internal position settings are offered for continuous motion contrul.
  • Destination position, speed and acceleration & deceleration commands could be changed in the middle of operation.
  • 35 kinds of homing modes are available.

Unique Built-in Electronic Cam (E-CAM)

  • Up to 720 E-CAM points.
  • Smooth interpulation between points can be completed automatically to yield a flexible programming.
  • ASDA-A2-Soft configuration software provides electronic cam (E-CAM) profile editing function.
  • Applicable for rotary cutoff and flying shear applications.

Full Closed-loop Contrul (Capable of reading second feedback signals)

  • Built-in position feedback interface (CN5) is able to read second feedback signals from motor encoder and send the current position back to the drive to form a full closed-loop so that high accuracy position contrul can be accomplished.
  • Reduce the effects of mechanical imperfections such as backlash and flexibility to ensure the position precision at machine edges.

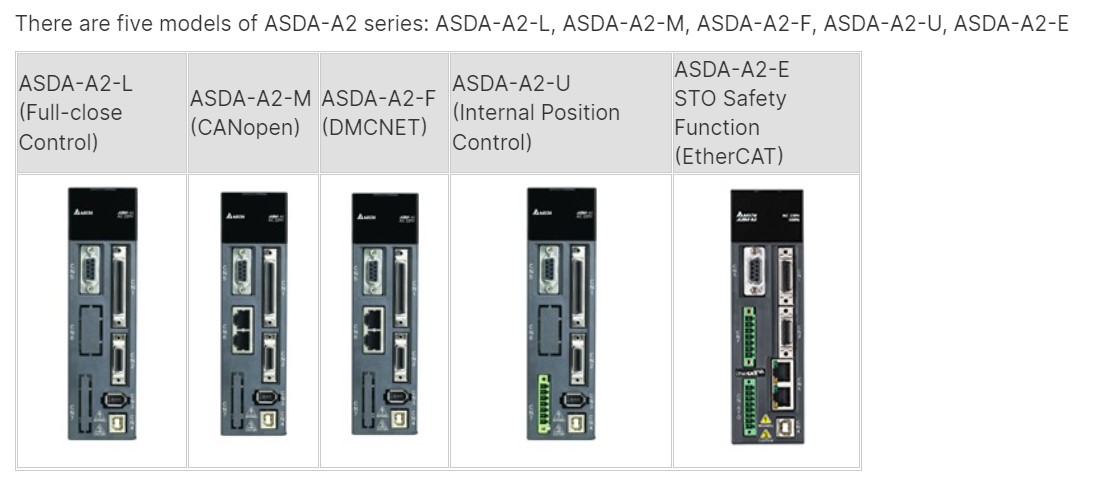

Features of ASDA-A2-M:

  • CANbus communication speed is 1M bps, in comply with CANopen DS301 standard.
  • 3 CANmotion modes (Profile Position Mode, Interpulation Position Mode, Homing Mode) are provided for CANopen DS402 standard. Max. length of the communication cable can reach up to 40m (when using standard communication cable).
  • Station configuration can be set via parameter settings.
  • In conjunction with Delta’s PLC, it is able to save the wiring and establish Delta fieldbus system configuration.

Features of ASDA-A2-U:

  • Max. 14 digital inputs.
  • Using powerful “Pr mode” is able to perform complex motions.
  • Quick connector is available for easy installation and use.
  • Built-in DC 24V power supply is provided to simplify the wiring and save space.

Features of ASDA-A2-E :

  • Touch probe function can be enabled with two dedicated Digital Inputs (DI) on CN7 or the external encoder.
  • Integrated Safe Torque Off (STO) safety function according to the standards of EN 61800-5-2; IEC 61508, SIL2; IEC 62061, SIL2; ISO 13849-1, Cat.3 ,PL=d
  • Wide power range coverage in both 220V and 400V
  • Supports full-closed loop contrul
  • Supports absulute type and incremental type ECMA Series servo motors
ASD-A2-0221-E A2 AC Servo Sürücü, 1 faz 220VAC, 200W, EtherCAT
ASD-A2-0221-M A2 AC Servo Sürücü, 1 faz 220VAC, 200W, CANOpen
ASD-A2-0221-F A2 AC Servo Sürücü, 1 faz 220VAC, 200W, DMCNET
ECMA-C10602RS AC Servo Motor, 200W, 20 Bit Incremental Enkoder, 3000rpm, Frensiz, 0.64 Nm, 60mm flanş, 14mm şaft
ECMA-C10602SS AC Servo Motor, 200W, 20 Bit Incremental Enkoder, 3000rpm, Frenli, 0.64 Nm, 60mm flanş, 14mm şaft
ECMA-CA0602RS AC Servo Motor, 200W, 17 Bit Absolute Enkoder, 3000rpm, Frensiz, 0.64 Nm, 60mm flanş, 14mm şaft
ECMA-CA0602SS AC Servo Motor, 200W, 17 Bit Absolute Enkoder, 3000rpm, Frenli, 0.64 Nm, 60mm flanş, 14mm şaft
ASD-A2-0421-E A2 AC Servo Sürücü, 1 faz 220VAC, 400W, EtherCAT
ASD-A2-0421-M A2 AC Servo Sürücü, 1 faz 220VAC, 400W, CANOpen
ASD-A2-0421-F A2 AC Servo Sürücü, 1 faz 220VAC, 400W, DMCNET
ECMA-C10604RS AC Servo Motor, 400W, 20 Bit Incremental Enkoder, 3000rpm, Frensiz, 1.27 Nm, 60mm flanş, 14mm şaft
ECMA-C10604SS AC Servo Motor, 400W, 20 Bit Incremental Enkoder, 3000rpm, Frenli, 1.27 Nm, 60mm flanş, 14mm şaft
ECMA-CA0604RS AC Servo Motor, 400W, 17 Bit Absolute Enkoder, 3000rpm, Frensiz, 1.27 Nm, 60mm flanş, 14mm şaft
ECMA-CA0604SS AC Servo Motor, 400W, 17 Bit Absolute Enkoder, 3000rpm, Frenli, 1.27 Nm, 60mm flanş, 14mm şaft
ASD-A2-0721-E A2 AC Servo Sürücü, 1 faz 220VAC, 750W, EtherCAT
ASD-A2-0721-M A2 AC Servo Sürücü, 1 faz 220VAC, 750W, CANOpen
ASD-A2-0721-F A2 AC Servo Sürücü, 1 faz 220VAC, 750W, DMCNET
ECMA-C10807RS AC Servo Motor, 750W, 20 Bit Incremental Enkoder, 3000rpm, Frensiz, 2.39 Nm, 80mm flanş, 19mm şaft
ECMA-C10807SS AC Servo Motor, 750W, 20 Bit Incremental Enkoder, 3000rpm, Frenli, 2.39 Nm, 80mm flanş, 19mm şaft
ECMA-CA0807RS AC Servo Motor, 750W, 17 Bit Absolute Enkoder, 3000rpm, Frensiz, 2.39 Nm, 80mm flanş, 19mm şaft
ECMA-CA0807SS AC Servo Motor, 750W, 17 Bit Absolute Enkoder, 3000rpm, Frenli, 2.39 Nm, 80mm flanş, 19mm şaft
ECMA-C10807RH AC Servo Motor, 750W, 20 Bit Incremental Enkoder, 3000rpm, Frenli, 2.39 Nm, 80mm flanş, 19mm şaft (YÜKSEK ATALET)
ASD-A2-1021-E A2 AC Servo Sürücü, 1 faz 220VAC, 1kW, EtherCAT
ASD-A2-1021-M A2 AC Servo Sürücü, 1 faz 220VAC, 1kW, CANOpen
ASD-A2-1021-F A2 AC Servo Sürücü, 1 faz 220VAC, 1kW, DMCNET
ECMA-E11310RS AC Servo Motor, 1kW, 20 Bit Incremental Enkoder, 2000rpm, Frensiz, 4.77 Nm, 130mm flanş, 22mm şaft (ORTA ATALET)
ECMA-E11310SS AC Servo Motor, 1kW, 20 Bit Incremental Enkoder, 2000rpm, Frenli, 4.77 Nm, 130mm flanş, 22mm şaft (ORTA ATALET)
ECMA-C11010RS AC Servo Motor, 1kW, 20 Bit Incremental Enkoder, 3000rpm, Frensiz, 3.18 Nm, 100mm flanş, 22mm şaft (DÜŞÜK ATALET)
ECMA-C11010SS AC Servo Motor, 1kW, 20 Bit Incremental Enkoder, 3000rpm, Frenli, 3.18 Nm, 100mm flanş, 22mm şaft (DÜŞÜK ATALET)
ECMA-EA1310RS AC Servo Motor, 1kW, 17 Bit Absolute Enkoder, 2000rpm, Frensiz, 4.77 Nm, 130mm flanş, 22mm şaft (ORTA ATALET)
ECMA-EA1310SS AC Servo Motor, 1kW, 17 Bit Absolute Enkoder, 2000rpm, Frenli, 4.77 Nm, 130mm flanş, 22mm şaft (ORTA ATALET)
ECMA-CA1010RS AC Servo Motor, 1kW, 17 Bit Absolute Enkoder, 3000rpm, Frensiz, 3.18 Nm, 100mm flanş, 22mm şaft (DÜŞÜK ATALET)
ECMA-CA1010SS AC Servo Motor, 1kW, 17 Bit Absolute Enkoder, 3000rpm, Frenli, 3.18 Nm, 100mm flanş, 22mm şaft (DÜŞÜK ATALET)
ASD-A2-1521-E A2 AC Servo Sürücü, 1 faz 220VAC, 1.5kW, EtherCAT
ASD-A2-1521-M A2 AC Servo Sürücü, 1 faz 220VAC, 1.5kW, CANOpen
ASD-A2-1521-F A2 AC Servo Sürücü, 1 faz 220VAC, 1.5kW, DMCNET
ECMA-E11315RS AC Servo Motor, 1.5kW, 20 Bit Incremental Enkoder, 2000rpm, Frensiz, 7.16 Nm, 130mm flanş, 22mm şaft (ORTA ATALET)
ECMA-E11315SS AC Servo Motor, 1.5kW, 20 Bit Incremental Enkoder, 2000rpm, Frenli, 7.16 Nm, 130mm flanş, 22mm şaft (ORTA ATALET)
ECMA-EA1315RS AC Servo Motor, 1kW, 17 Bit Absolute Enkoder, 2000rpm, Frensiz, 7.16 Nm, 130mm flanş, 22mm şaft (ORTA ATALET)
ECMA-EA1315SS AC Servo Motor, 1kW, 17 Bit Absolute Enkoder, 2000rpm, Frenli, 7.16 Nm, 130mm flanş, 22mm şaft (ORTA ATALET)
ASD-A2-2043-E A2 AC Servo Sürücü, 3 faz 400VAC, 2kW, EtherCAT
ASD-A2-2043-M A2 AC Servo Sürücü, 3 faz 400VAC, 2kW, CANOpen
ASD-A2-2043-F A2 AC Servo Sürücü, 3 faz 400VAC, 2kW, DMCNET
ECMA-K11320RS AC Servo Motor, 2kW, 20 Bit Incremental Enkoder, 2000rpm, Frensiz, 9.55 Nm, 130mm flanş, 22mm şaft (ORTA ATALET)
ECMA-K11320SS AC Servo Motor, 2kW, 20 Bit Incremental Enkoder, 2000rpm, Frenli, 9.55 Nm, 130mm flanş, 22mm şaft (ORTA ATALET)
ECMA-J11020RS AC Servo Motor, 2kW, 20 Bit Incremental Enkoder, 3000rpm, Frensiz, 6.37 Nm, 100mm flanş, 22mm şaft (DÜŞÜK ATALET)
ECMA-J11020SS AC Servo Motor, 2kW, 20 Bit Incremental Enkoder, 3000rpm, Frenli, 6.37 Nm, 100mm flanş, 22mm şaft (DÜŞÜK ATALET)
ECMA-KA1320RS AC Servo Motor, 2kW, 17 Bit Absolute Enkoder, 2000rpm, Frensiz, 9.55 Nm, 130mm flanş, 22mm şaft (ORTA ATALET)
ECMA-KA1320SS AC Servo Motor, 2kW, 17 Bit Absolute Enkoder, 2000rpm, Frenli, 9.55 Nm, 130mm flanş, 22mm şaft (ORTA ATALET)
ECMA-JA1020RS AC Servo Motor, 2kW, 17 Bit Absolute Enkoder, 3000rpm, Frensiz, 6.37 Nm, 100mm flanş, 22mm şaft (DÜŞÜK ATALET)
ECMA-JA1020SS AC Servo Motor, 2kW, 17 Bit Absolute Enkoder, 3000rpm, Frenli, 6.37 Nm, 100mm flanş, 22mm şaft (DÜŞÜK ATALET)
ASD-A2-3043-E A2 AC Servo Sürücü, 3 faz 400VAC, 3kW, EtherCAT
ASD-A2-3043-M A2 AC Servo Sürücü, 3 faz 400VAC, 3kW, CANOpen
ASD-A2-3043-F A2 AC Servo Sürücü, 3 faz 400VAC, 3kW, DMCNET
ECMA-L11830RS AC Servo Motor, 3kW, 20 Bit Incremental Enkoder, 1500rpm, Frensiz, 19.1 Nm, 180mm flanş, 35mm şaft (ORTA ATALET)
ECMA-L11830SS AC Servo Motor, 3kW, 20 Bit Incremental Enkoder, 1500rpm, Frenli, 19.1 Nm, 180mm flanş, 35mm şaft (ORTA ATALET)
ECMA-J11330R4 AC Servo Motor, 3kW, 20 Bit Incremental Enkoder, 3000rpm, Frensiz, 9.55 Nm, 130mm flanş, 24mm şaft (DÜŞÜK ATALET)
ECMA-J11330S4 AC Servo Motor, 3kW, 20 Bit Incremental Enkoder, 3000rpm, Frenli, 9.55 Nm, 130mm flanş, 24mm şaft (DÜŞÜK ATALET)
ECMA-LA1830RS AC Servo Motor, 3kW, 17 Bit Absolute Enkoder, 1500rpm, Frensiz, 19.1 Nm, 180mm flanş, 35mm şaft (ORTA ATALET)
ECMA-LA1830SS AC Servo Motor, 3kW, 17 Bit Absolute Enkoder, 1500rpm, Frenli, 19.1 Nm, 180mm flanş, 35mm şaft (ORTA ATALET)
ECMA-JA1330R4 AC Servo Motor, 3kW, 17 Bit Absolute Enkoder, 3000rpm, Frensiz, 9.55 Nm, 130mm flanş, 24mm şaft (DÜŞÜK ATALET)
ECMA-JA1330S4 AC Servo Motor, 3kW, 17 Bit Absolute Enkoder, 3000rpm, Frenli, 9.55 Nm, 130mm flanş, 24mm şaft (DÜŞÜK ATALET)
ASD-A2-4543-E A2 AC Servo Sürücü, 3 faz 400VAC, 4.5kW, EtherCAT
ASD-A2-4543-M A2 AC Servo Sürücü, 3 faz 400VAC, 4.5kW, CANOpen
ASD-A2-4543-F A2 AC Servo Sürücü, 3 faz 400VAC, 4.5kW, DMCNET
ECMA-L11845RS AC Servo Motor, 4.5kW, 20 Bit Incremental Enkoder, 1500rpm, Frensiz, 28.65 Nm, 180mm flanş, 35mm şaft (ORTA ATALET)
ECMA-L11845SS AC Servo Motor, 4.5kW, 20 Bit Incremental Enkoder, 1500rpm, Frenli, 28.65 Nm, 180mm flanş, 35mm şaft (ORTA ATALET)
ECMA-LA1845RS AC Servo Motor, 4.5kW, 17 Bit Absolute Enkoder, 1500rpm, Frensiz, 28.65 Nm, 180mm flanş, 35mm şaft (ORTA ATALET)
ECMA-LA1845SS AC Servo Motor, 4.5kW, 17 Bit Absolute Enkoder, 1500rpm, Frenli, 28.65 Nm, 180mm flanş, 35mm şaft (ORTA ATALET)
ASD-A2-5543-E A2 AC Servo Sürücü, 3 faz 400VAC, 5.5kW, EtherCAT
ASD-A2-5543-M A2 AC Servo Sürücü, 3 faz 400VAC, 5.5kW, CANOpen
ASD-A2-5543-F A2 AC Servo Sürücü, 3 faz 400VAC, 5.5kW, DMCNET
ECMA-L11855R3 AC Servo Motor, 5.5kW, 20 Bit Incremental Enkoder, 1500rpm, Frensiz, 35 Nm, 180mm flanş, 42mm şaft (ORTA ATALET)
ECMA-L11855S3 AC Servo Motor, 5.5kW, 20 Bit Incremental Enkoder, 1500rpm, Frenli, 35 Nm, 180mm flanş, 42mm şaft (ORTA ATALET)
ECMA-J11350R8LA AC Servo Motor, 5kW, 20 Bit Incremental Enkoder, 3000rpm, Frensiz, 15.9 Nm, 130mm flanş, 28mm şaft (DÜŞÜK ATALET)
ECMA-J11350S8LA AC Servo Motor, 5kW, 20 Bit Incremental Enkoder, 3000rpm, Frenli, 15.9 Nm, 130mm flanş, 28mm şaft (DÜŞÜK ATALET)
ECMA-LA1855R3 AC Servo Motor, 5.5kW, 17 Bit Absolute Enkoder, 1500rpm, Frensiz, 35 Nm, 180mm flanş, 42mm şaft (ORTA ATALET)
ECMA-LA1855S3 AC Servo Motor, 5.5kW, 17 Bit Absolute Enkoder, 1500rpm, Frenli, 35 Nm, 180mm flanş, 42mm şaft (ORTA ATALET)
ASD-A2-7543-E A2 AC Servo Sürücü, 3 faz 400VAC, 7.5kW, EtherCAT
ASD-A2-7543-M A2 AC Servo Sürücü, 3 faz 400VAC, 7.5kW, CANOpen
ASD-A2-7543-F A2 AC Servo Sürücü, 3 faz 400VAC, 7.5kW, DMCNET
ECMA-L11875R3 AC Servo Motor, 7.5kW, 20 Bit Incremental Enkoder, 1500rpm, Frensiz, 47.75 Nm, 180mm flanş, 42mm şaft (ORTA ATALET)
ECMA-L11875S3 AC Servo Motor, 7.5kW, 20 Bit Incremental Enkoder, 1500rpm, Frenli, 47.75 Nm, 180mm flanş, 42mm şaft (ORTA ATALET)
ECMA-LA1875R3 AC Servo Motor, 7.5kW, 17 Bit Absolute Enkoder, 1500rpm, Frensiz, 47.75 Nm, 180mm flanş, 42mm şaft (ORTA ATALET)
ECMA-LA1875S3 AC Servo Motor, 7.5kW, 17 Bit Absolute Enkoder, 1500rpm, Frenli, 47.75 Nm, 180mm flanş, 42mm şaft (ORTA ATALET)
  • Hassas oyma makinesi
  • recise torna / freze makinesi
  • çift kolonlu işleme merkezi
  • TFT LCD kesme makinası
  • robot kolu
  • IC paketleme makinesi
  • yüksek hızlı paketleme makinesi
  • CNC işleme ekipmanları
  • enjeksiyon işleme ekipmanları
  • etiket yerleştirme makinesi
  • gıda paketleme makinası
  • baskı
